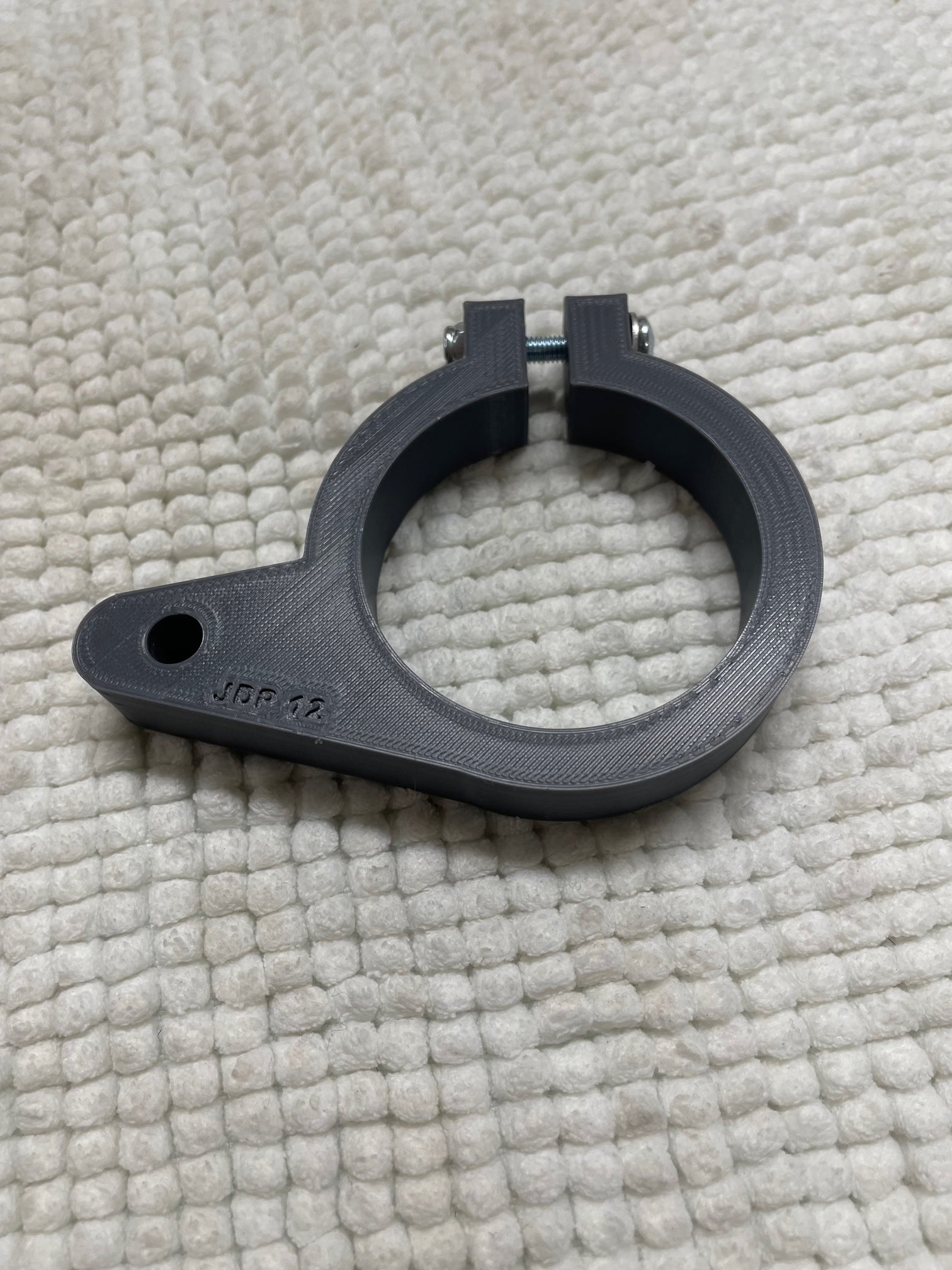

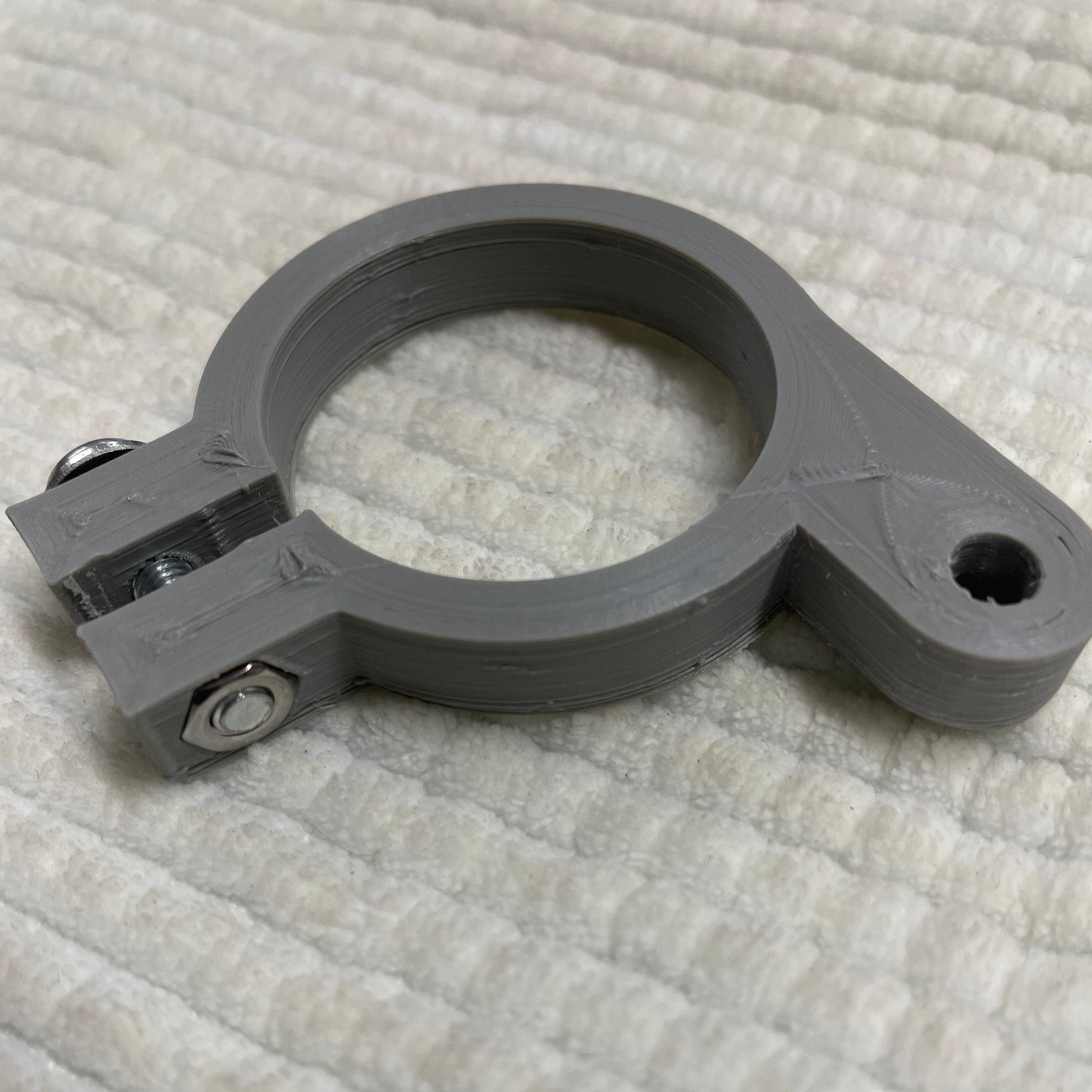

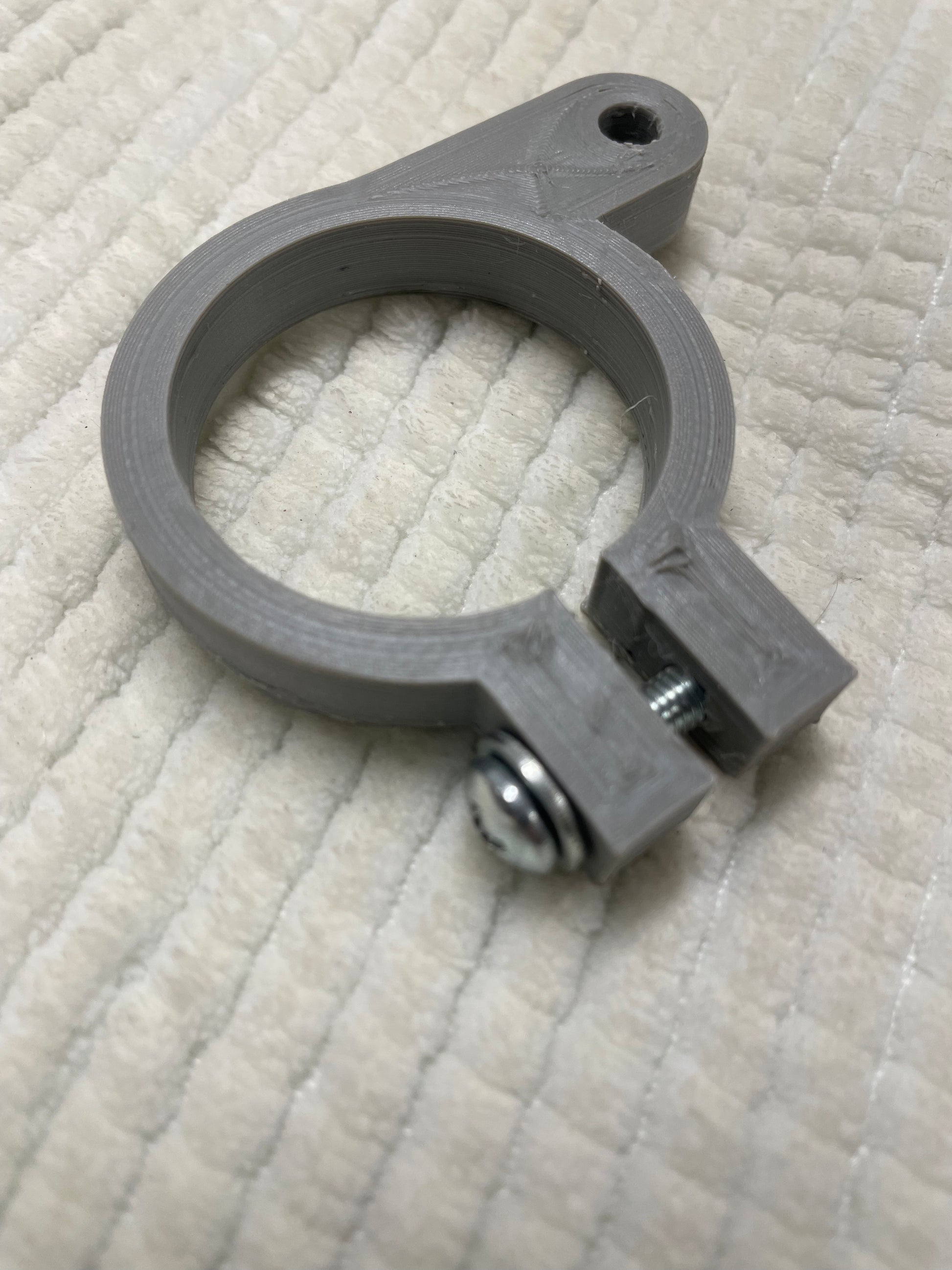

This listing is for a Delta 11-900 Type 2 Drill Press Depth Adjustment Collar including screw & nut. A customer says e fit a Craftsman Model: 113.213100 8 in Drill Press Part # 817414. Another drill press it fits is an Apollo RY-6 1/2 inch chuck 5 speed.
Collar Part #: 1310008 All of these are obsolete parts that come in this replacement kit.
Screw Part #: 1310006
Nut Part #: 1243395

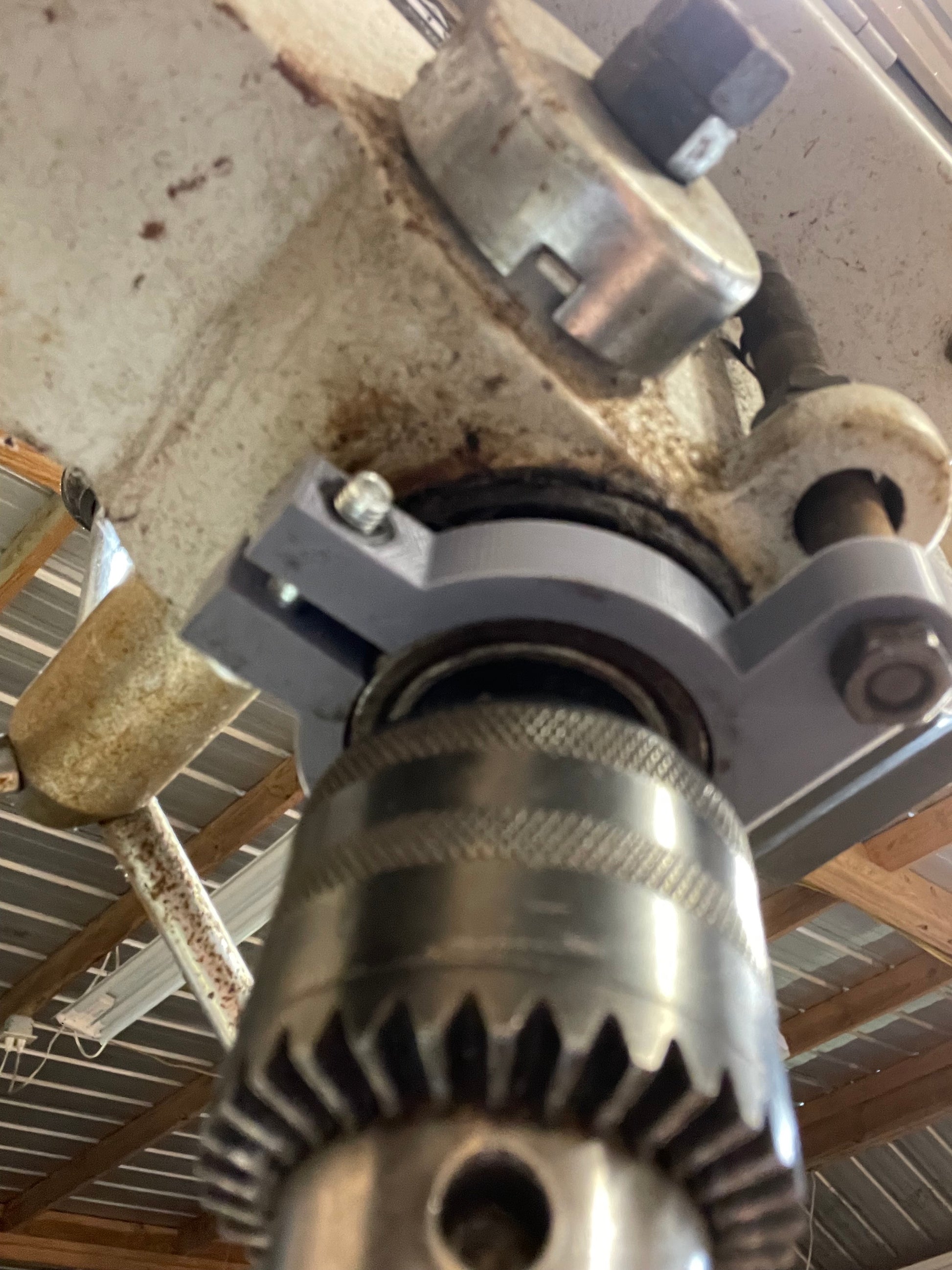

The collar fits the tube above the chuck

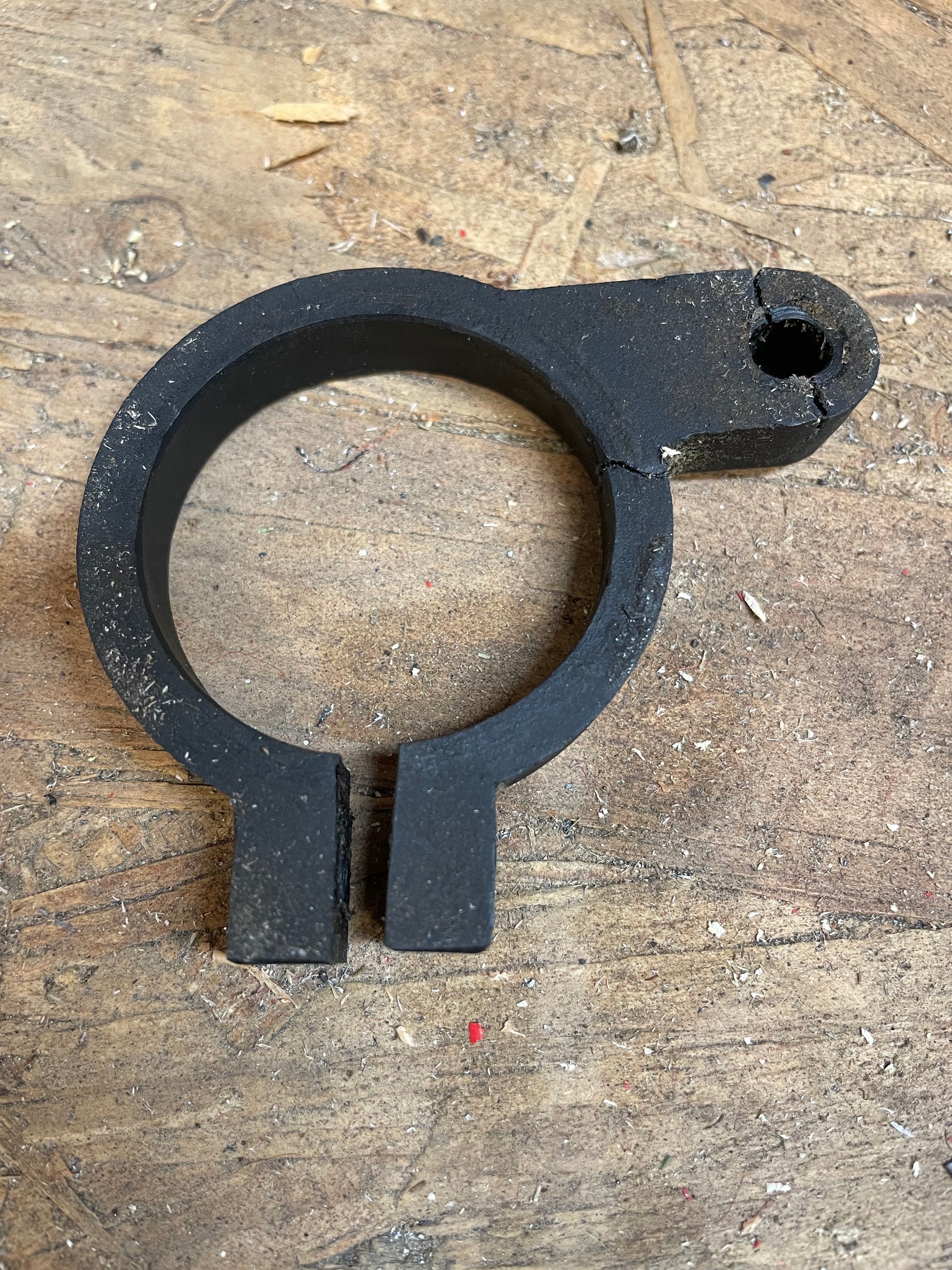

To remove your broken collar, remove the chuck and undo the slide with the depth gauge. Slip the old one off and replace the new one. Insert and tighten the depth gauge, then secure the collar flush and tighten locking screw.
Now you will be able to accurately drill the same depth holes in your work piece.
