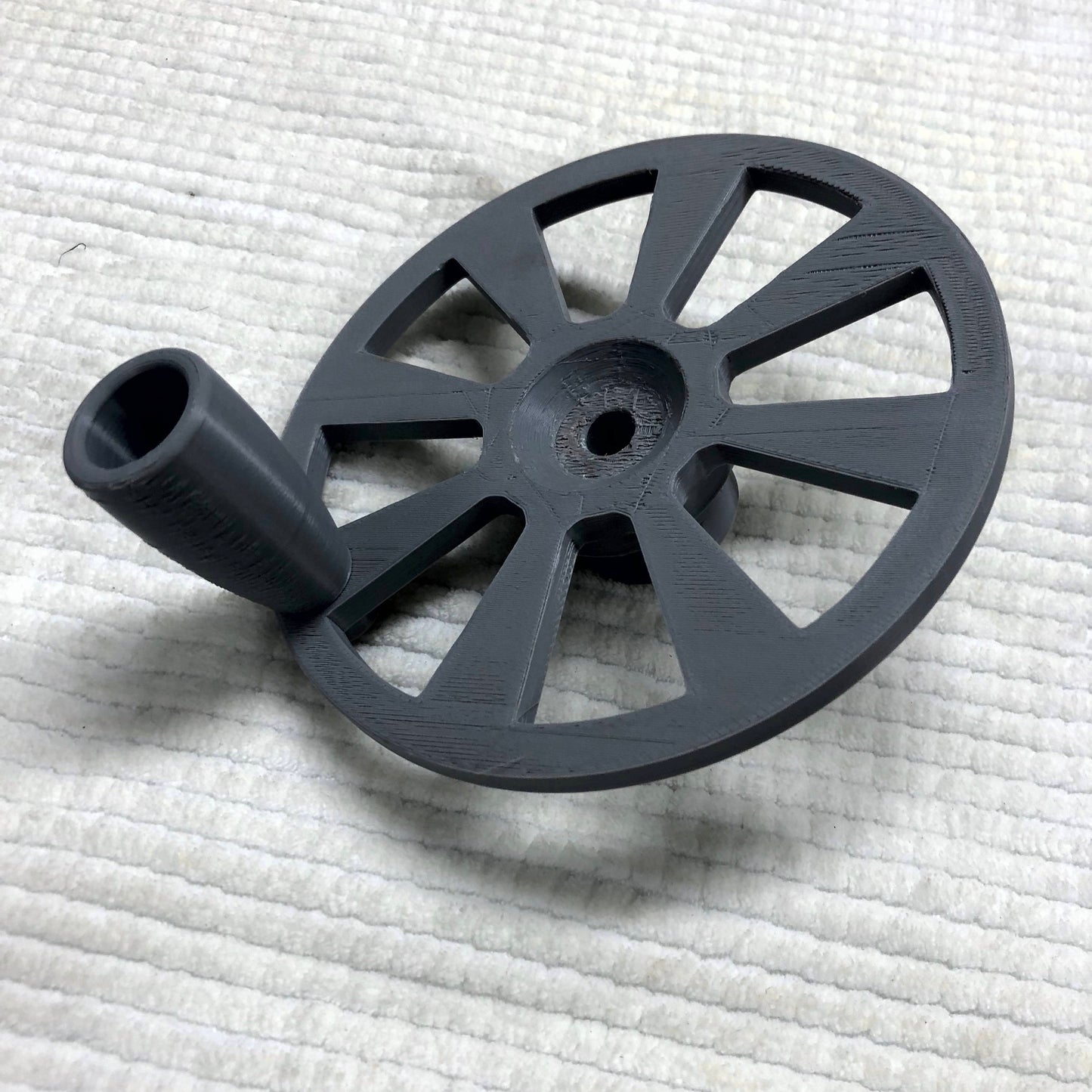

Craftsman 10 in Table Saw Handle Wheel Pt#: 27528.00

This listing is for an obsolete adjustment Hand Wheel for a Craftsman 152.221040, 152.221140, 152.221240, &

351.221140 Table Saws. Part# 27558.00

Also: 137.221960 Table Saw Part# 14900610A1

A similar Handle Wheel Part# 0SWY & 0SWZ that will work if the hub is 1-3/8 in diameter an the rod is 3/8 in with a spring pin. Measure before buying.

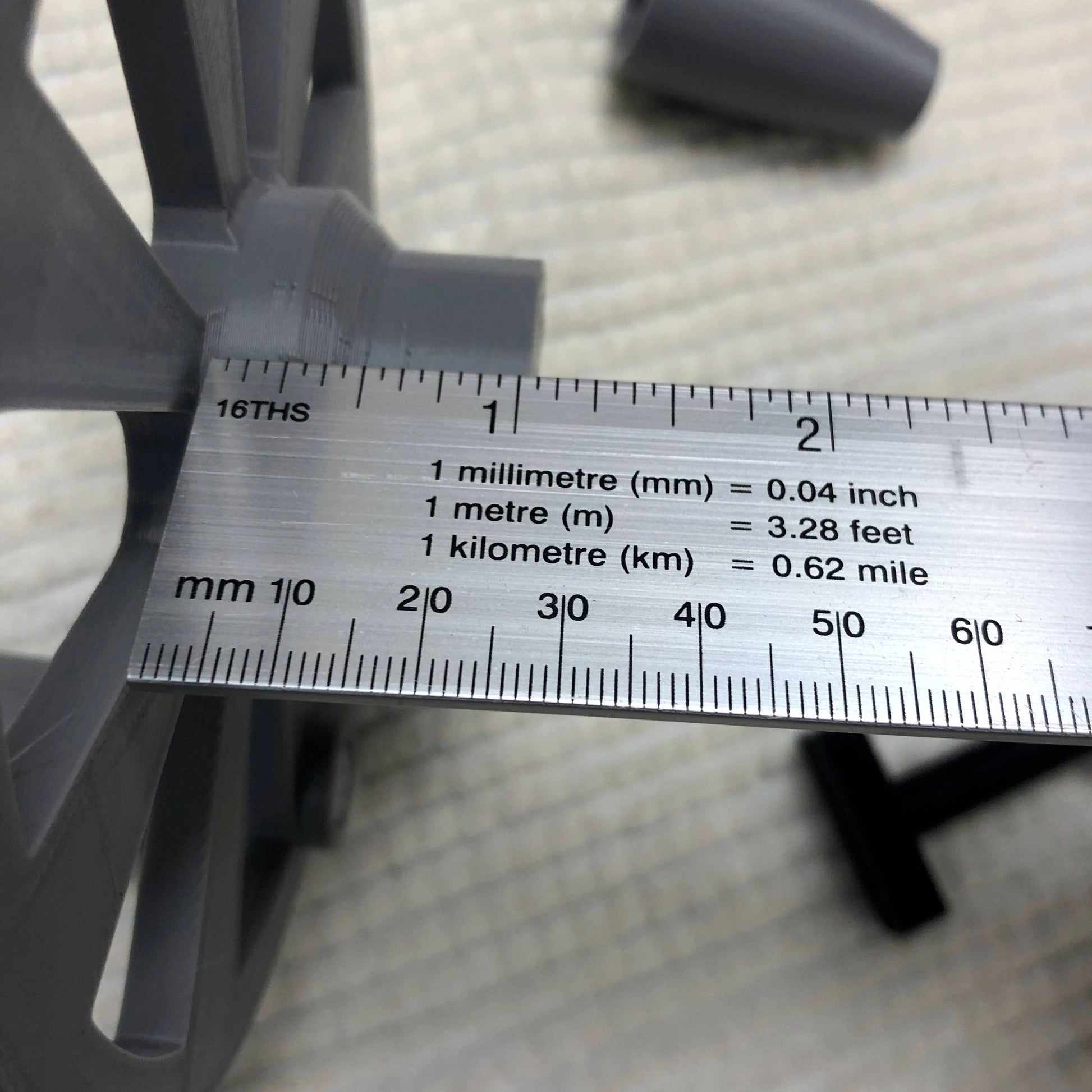

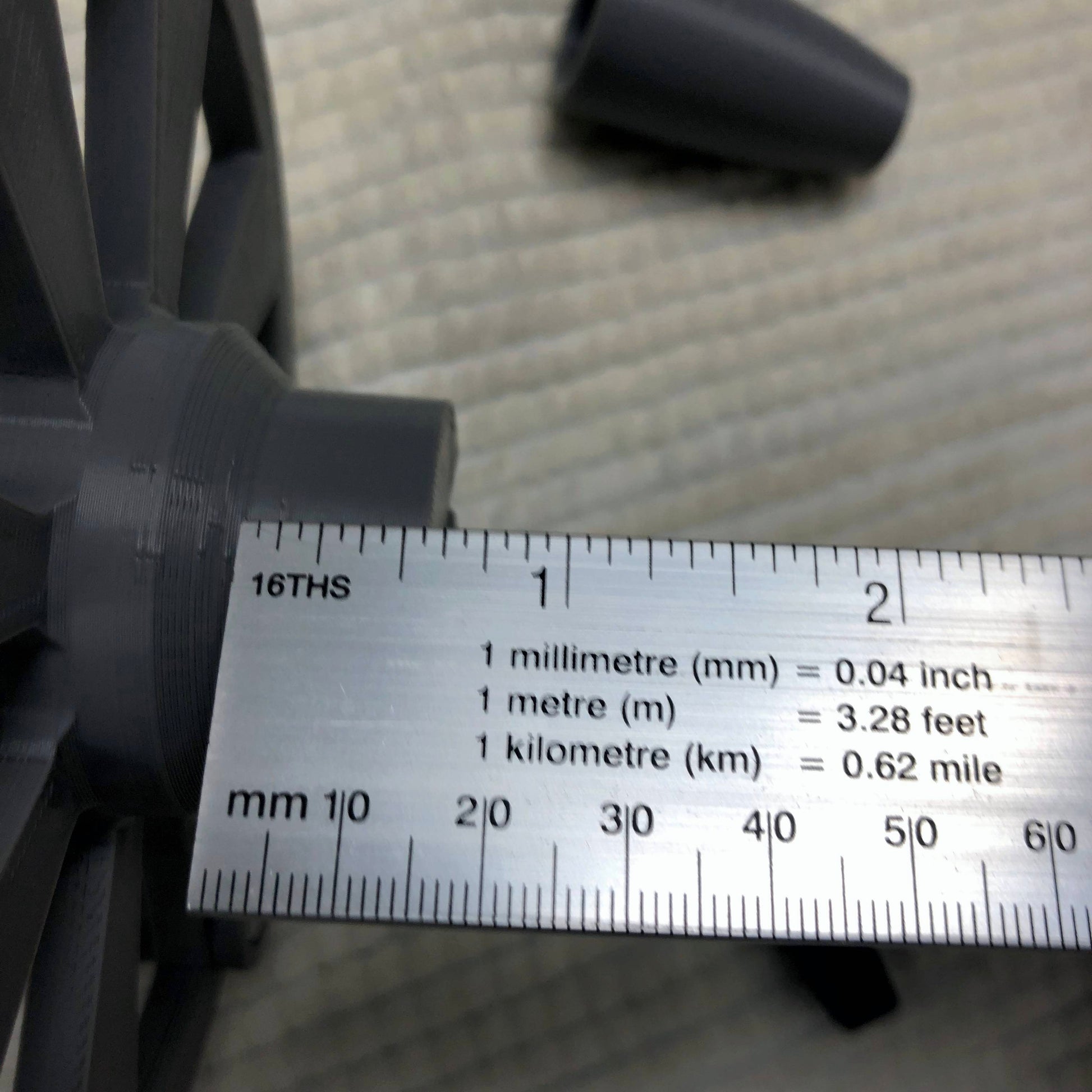

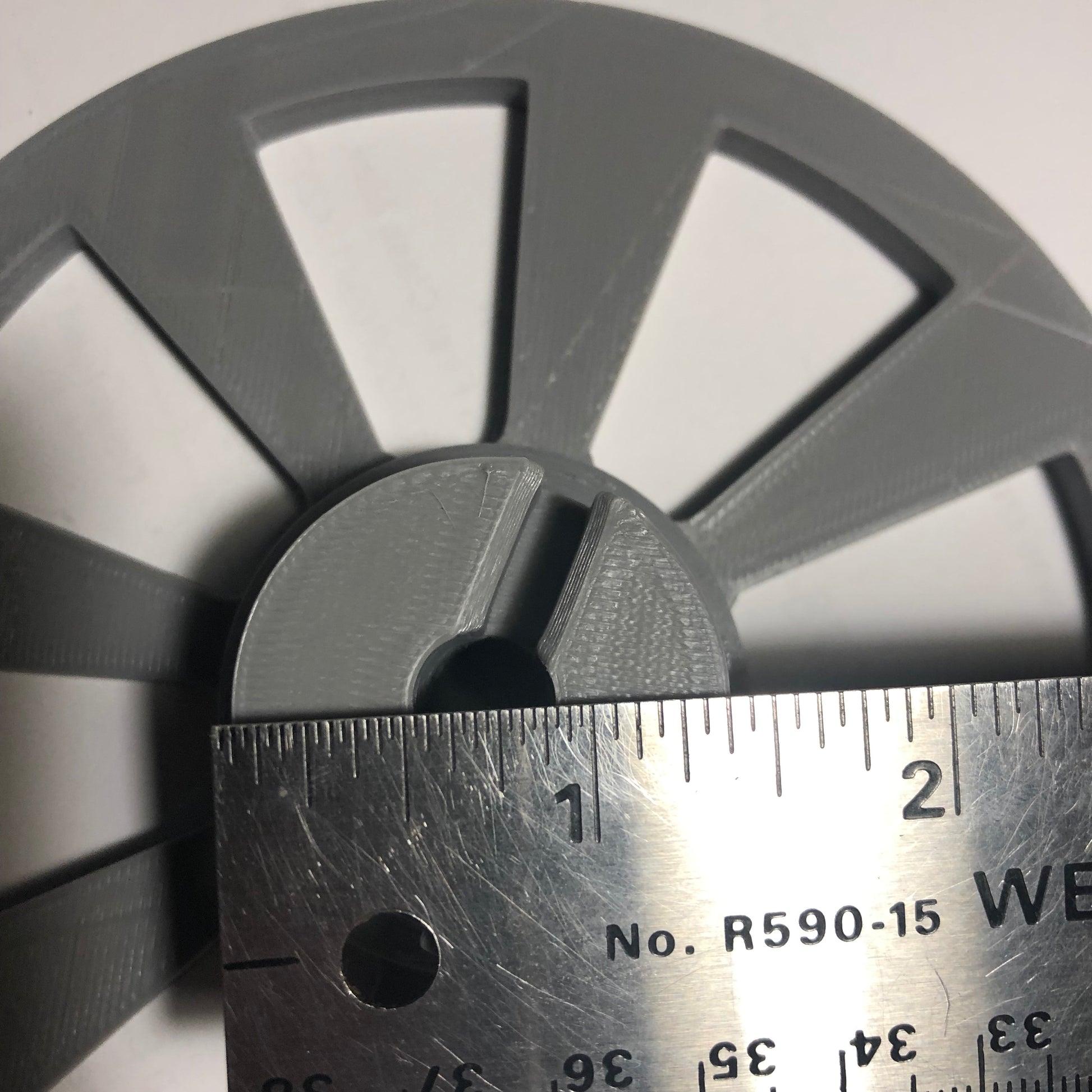

The part has been fit tested and will replace the original part. The wheel diameter is 5-1/2 in, the center hole is 3/8 in, the slot is 3/16 in across & 3/8 in deep, the driven end is 1-3/8 in in diameter & 5/8 in long, the height is 1-1/4inch without the hand grip spinner. The hand spinner is 1-1/2 inch and makes the total 2-3/4" in height.

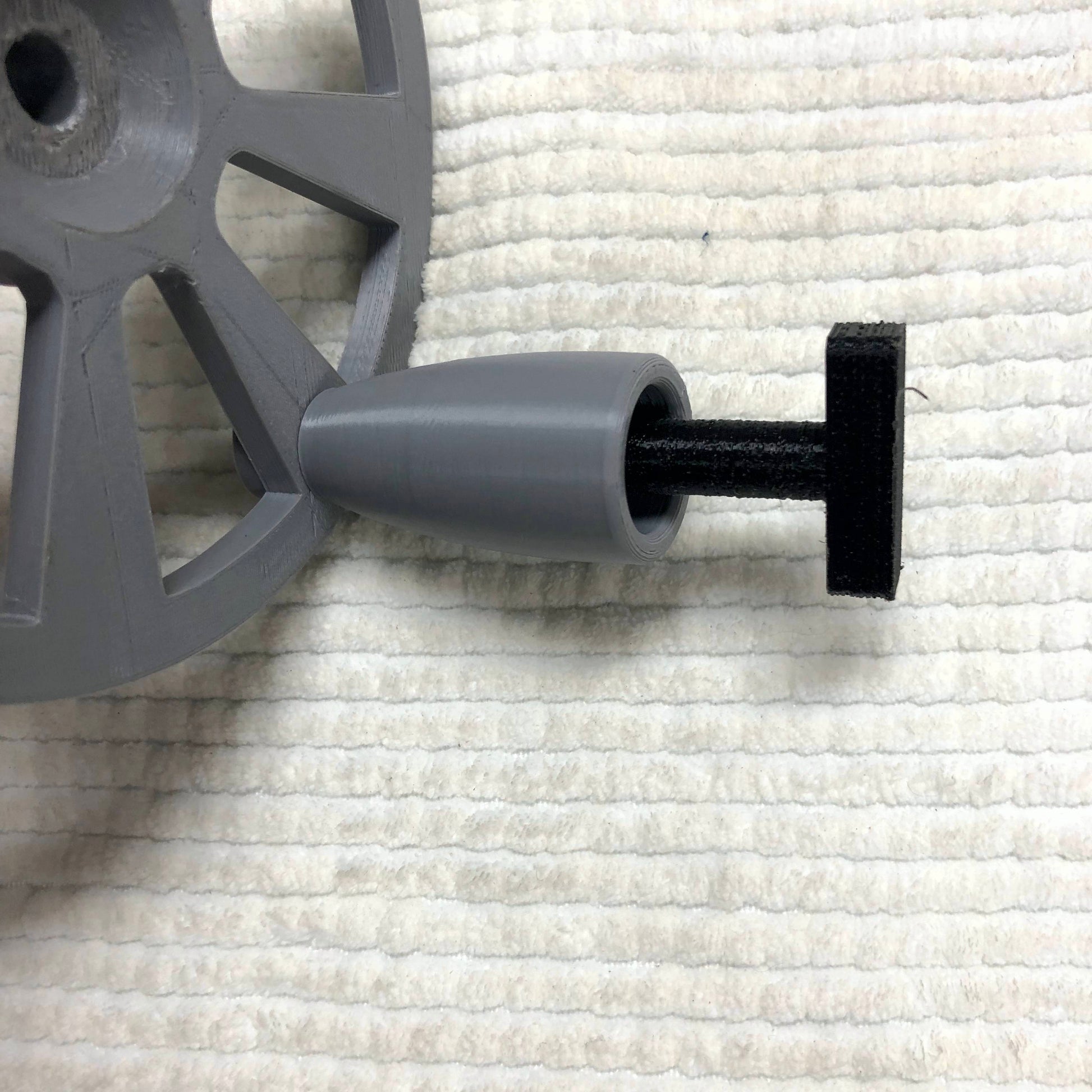

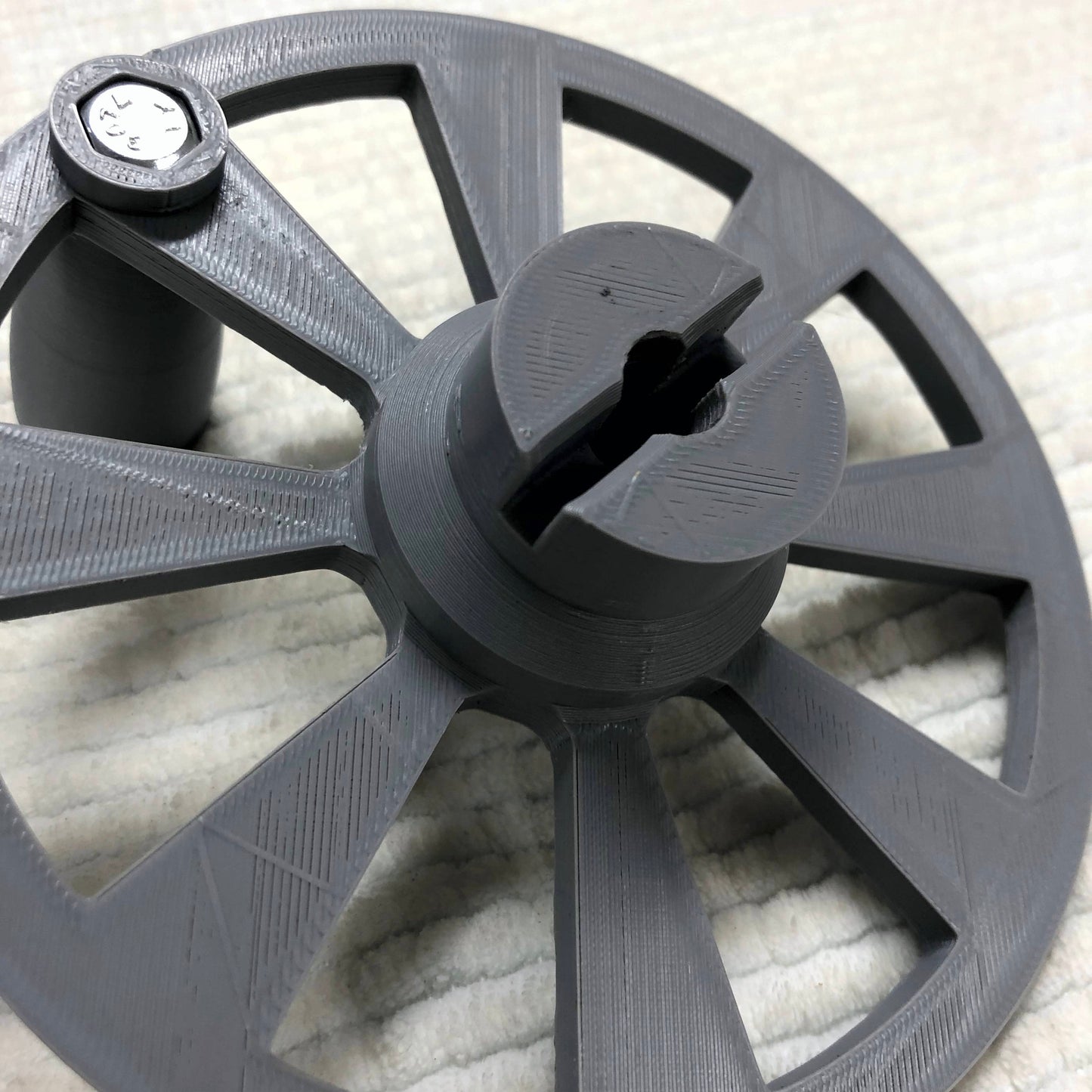

The Nylock nut for the spinner bolt and goes inside the spinner. A tool is provided to tighten the nut to the bolt because your fingers can't get in the space.

These are improvements in the handle design to allow for a better print and function when mounted in the saw. The part looks different, but the critical dimensions are the same as the original part.

Thanks for your purchase from Ben's Creations.
